BOPP Coextruded Dual-Side Heat Sealable Label Film - High-Performance Pressure-Sensitive Label Substrate

Brand Name:	Guofeng
Model Number:	G1S
MOQ:	1 ton
Price:	1.0-2.0 USD/KG
Payment Terms:	T/T,L/C,D/P,D/A,Western Union,MoneyGram
Supply Ability:	180000 TON/YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

HEFEI, CHINA

Certification:

ISO9001, ISO14001, ISO45001, QS production license and ISO/TS16949 UK DAKKS

Material:

BOPP

Processing Type:

Extrusion

Strech Type:

Bi-axially Oriented

Thickness:

50μm / 60μm / 75μm (±2%)

Width:

Customized

Length:

Customized

Package:

Simple/vertical/suspend/horizontal

Corona Treatment:

Both Sides

Color:

Clear

Density:

0.91

Gloss:

≥90

Haze:

≤2.0%

Packaging Details:

Pallet

Supply Ability:

180000 TON/YEAR

Highlight:

BOPP heat sealable label film

dual-side pressure-sensitive label substrate

high-performance BOPP film substrate

Product Description

BOPP Coextruded Dual-Side Heat Sealable Label Film

High-performance pressure-sensitive label substrate with unique two-sided sealability and exceptional print receptivity.

Product Overview

Our BOPP Coex Dual-Side Heat Sealable Film revolutionizes pressure-sensitive label production with unique two-sided sealability and exceptional print receptivity. This 5-layer coextruded film delivers instant seals at 110-130°C on both surfaces, eliminating orientation errors in high-speed label applications while providing superior ink adhesion for flexo/UV printing.

Key Features

Dual-Side Heat Sealable - Seals equally at 5-7 N/15mm on both surfaces
Premium Printing Surface - 38-42 dynes/cm for water-based/UV ink adhesion
Coex Structure Advantage - Outer: Print-receptive / Core: Barrier / Inner: Seal layers
Dimensional Stability - <0.3% shrinkage @ 150°C for precise die-cutting
Low-Temperature Flexibility - Remains pliable down to -40°C

Technical Specifications

Property	Value
Material	BOPP (Biaxially Oriented Polypropylene)
Application	Commercial Printing, Packaging, Promotional Items
Thickness Range	50μm / 60μm / 75μm (±2%)
Width	Customizable (500mm - 1500mm)
Seal Strength (0.5s)	5-7 N/15mm both sides
Hot Tack Initiation	110°C
Tensile Strength (MD)	160-180 MPa
Tensile Strength (TD)	240-260 MPa
Haze	≤2%
Gloss	≥90
Density	0.91

Applications

PS Label Stock - Primary substrate for pressure-sensitive labels
Ice Cream Containers - Withstands -40°C to 60°C thermal cycling
Chemical Drums | Frozen Food Packaging | Retail Price Tags
Pharmaceutical Labels - Compatible with sterilization processes

Manufacturing Benefits

30% Faster Production - No need for surface treatment pre-printing
Eliminates Waste - Zero "wrong side" sealing errors in automated applicators
Enhanced Durability - Resists cracking during cold storage/freezing
Regulatory Compliance - Meets FDA 21 CFR 175.105 for indirect food contact

Why Choose This Film?

Proven on 20+ Coating Lines - Optimized for silicone release coating
Consistent Quality | Batch-to-batch variation <2%
Sustainable Option - 25-50% PCR content available
Technical Support - Free rheology testing for your adhesive systems

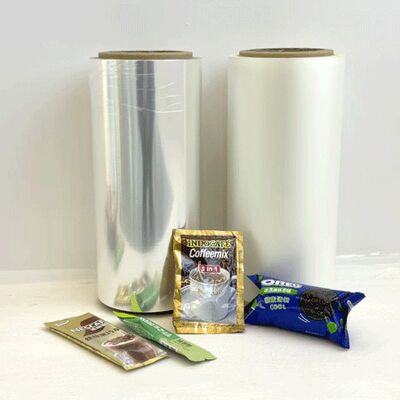

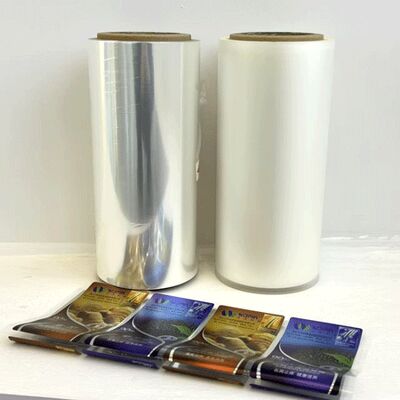

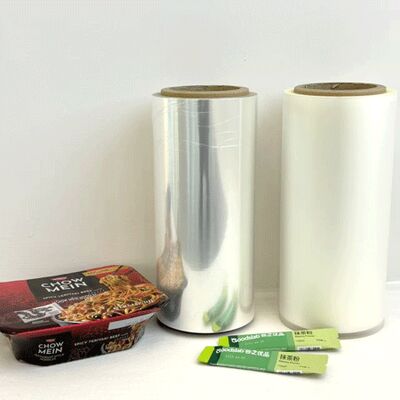

Product Images

Customer Feedback

"Achieved 98% first-pass yield on our Mark Andy presses - no corona treatment needed."

"The dual-side sealability solved our orientation issues on 400ppm applicators."

"Replaced PE labels completely - better stiffness for automatic application."

Packing & Storage

Storage Guidelines:
• Shelf Life: 6 months from manufacture date
• Temperature: 10°C - 30°C
• Humidity: Below 60% relative humidity
• Handling: Avoid folding or creasing to prevent damage

Order Now!

Standard Rolls - 500-1,500mm widths, 3"/6" cores.
Samples - Free 100-meter samples available for testing.
MOQ - 20GP for bulk orders; discounts for 100TON.

Email us for technical datasheets and transfer process guidelines!
Request Chopstick Packaging Samples - Include your machine make/model for optimized recommendations
