| Brand Name: | Guofeng |
| Model Number: | PI2 |
| MOQ: | 1 ton |
| Price: | 1.0-2.0 USD/KG |
| Payment Terms: | T/T,L/C,D/P,D/A,Western Union,MoneyGram |
| Supply Ability: | 180000 TON/YEAR |

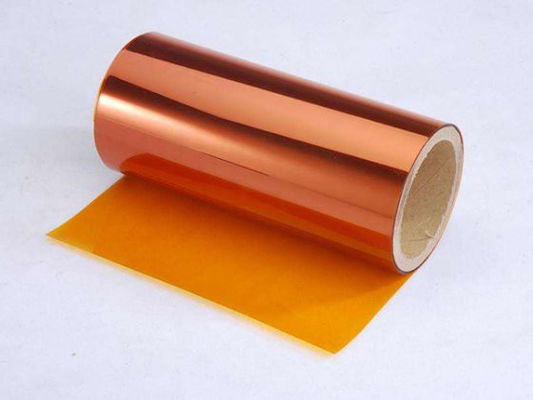

Our GC-Type Polyimide Carbon-Based Film is a biaxially stretched, high-carbon-yield PI film engineered specifically for manufacturing artificial graphite films through high-temperature graphitization (up to 3000°C). With ultra-high molecular orientation and optimized imidization, it delivers superior dimensional stability and carbonization efficiency—critical for thermal management materials in electronics, aerospace, and energy storage.
✔ Controlled Carbon Yield (≥65%) – Maximizes graphite output
✔ Biaxial Stretching (MD/TD 3:1 ratio) – Ensures uniform crystal alignment
✔ Low Ash Content (<50ppm) – Minimizes impurities for high-purity graphite
✔ High-Temp Stability (≤450°C pre-carbonization) – Prevents premature degradation
✔ Customizable Thickness (25-125μm) – Tailored for target graphite density
Artificial Graphite Films – Heat spreaders for 5G/LED devices
Fuel Cell Components – Gas diffusion layers (GDLs)
Lithium-Ion Batteries – Anode current collectors
Satellite Components – High-purity thermal interfaces
Semiconductor Tools – Wafer processing carriers
|
Property |
Value |
|
Material |
Polyimide |
|
Application |
Artificial Graphite Films,Lithium-Ion Batteries |
|
Thickness Range |
25μm / 50μm / 75μm / 125μm (±3%) |
|
Width |
Customizable (e.g., 500mm - 1500mm) |
|
Surface Treatment |
Corona-treated |
|
Tensile Strength (MD) |
≥150 |
|
Tensile Strength (TD) |
≥260 |
|
Transparency |
≥ 90% |
Optimized for Graphitization – Proprietary PI formulation reduces pinholes and cracks
Batch Consistency – ±1% thickness tolerance for repeatable carbonization
Technical Support – Graphitization protocol sharing (temperature ramping, gas flow)
Dual Certification – Compliant with JIS K 7128 and ASTM D882
To ensure the longevity and performance of our BOPP film, please adhere to the following guidelines:
Order Now!
Standard Formats:

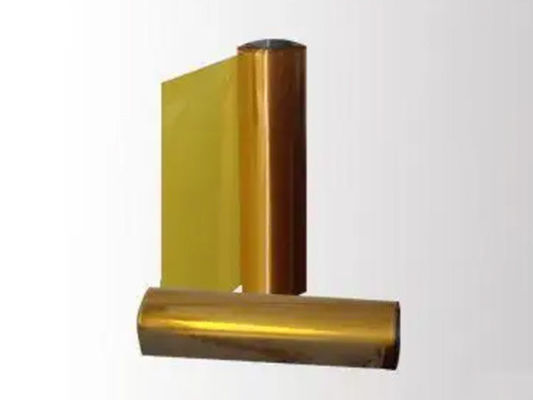

Roll Dimensions: 500mm/1,000mm width x 100-300m length
Core ID: 3" / 6" (industrial cores)
Special Services:
Pre-carbonized films (pre-baked at 600°C)
Custom imidization degrees (for controlled carbonization speed
MOQ: 200kg (sample rolls available)
Request our Graphitization Process Guide with temperature profiles for different end uses!
